Adult Diaper Machine

Adult Diaper Machine

Description:
Adult diaper machine mainly produces disposable diaper and economic diaper products used by mild, moderate or severe incontinence patient. It is controlled automatically in production and does not need to be shut down or reduce the speed to change the rolls. With the automatic deviation device, the adult diaper machinery picks out the defects automatically. The machine is automatically controlled by PLC and the drive is controlled by variable frequency. The operating desk is controlled by the touch screen. Man-machine conversation interface is designed in the operating terminal to realize figure digitalized control. Safety device is equipped on the operation panel. The adult diaper machine can produce different types of products according to the customers' requests. The color is appointed by clients. We use plywood pallets with plastic film for packaging and container for delivery.

Features of Adult Diaper Machinery:
1. Fluff core uses double moulds forming or aggregating unit.
2. The adult diaper machine is equipped with frontal waist tape, side waist tape, elastic waist tape and elastic rubber for leg mechanism.
3. Tri-folded are arranged to be output.
4. Hot-melt applicator is set in front of the machine. The bridge style makes it easy to feed the glue and control the temperature.
5. The adult diaper machine has non-woven top sheet, PE film back sheet, frontal tape and side tape devices.
6. Adult diaper machinery adheres to form elastic ribbon for side leakage proof.
7. The diaper will be output in line and easy for packing.
8. The machine wallboard is processed by the large gantry milling machine.

  • Main Configurations of Adult Diaper Machine:

    • 1. Pulp unwinding stand
      2. High speed cell mill with single in-feeding pulp
      3. Double drums molding device
      4. SAP applicator (two sets)
      5. Core embossing unit
      6. Core cutting unit
      7. Elastic ribbon unwinding unit
      8. Frontal tape applicator
      9. Side tape applicator
      10. Top sheet side gather unit
      11. Anatomic (R) cutting unit
      12. Longitudinal C type folding device
      13. Final cross cutting unit
      14. Product tri-folding device
      15. Reject gate
      16. Bag type dust collection system
      17. Product ordering output device

  • Main Technical Parameters of Adult Diaper Machine:

    • Designed Production Speed: 180pcs/min
      Standard Production Speed: 150pcs/min
      Ratio of Conformity: ≥80%
      Required Power Supply: 355 Kw (glue applicator and air compressor excluded)
      Power: 380V, 50Hz, 3 Phases
      Compressed Air: 0.6-0.8Mpa, 2.5 m³/min
      Dimensions: (m) L×W×H: 32×8×4.5 (for reference)

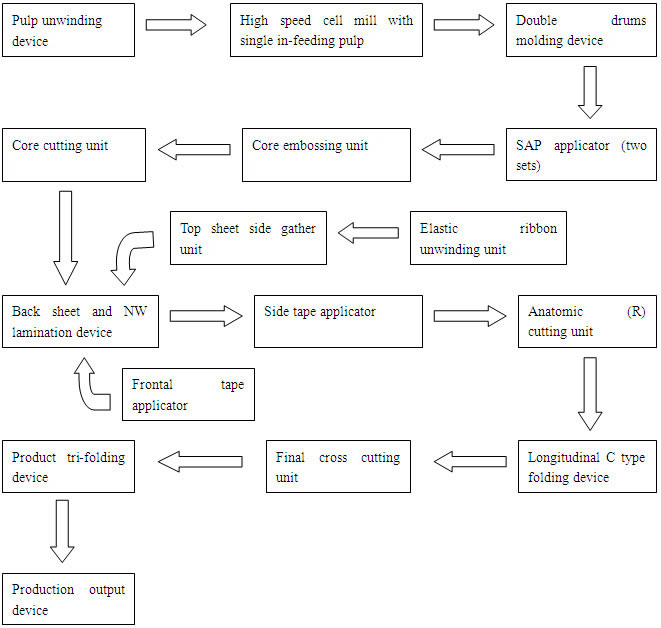

  • Flow Chart of Adult Diaper Machine:

LANDYTK® Machine is a professional adult diaper machinery manufacturer in China. In addition to the adult machines, we also provide maternity napkin production line, hemostasia pad production line, breast pad machinery, pet diaper machine, pet pad machine and packing machines, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our clients are from all over the world, including Europe, the Middle East, Africa and Southeast Asia.
