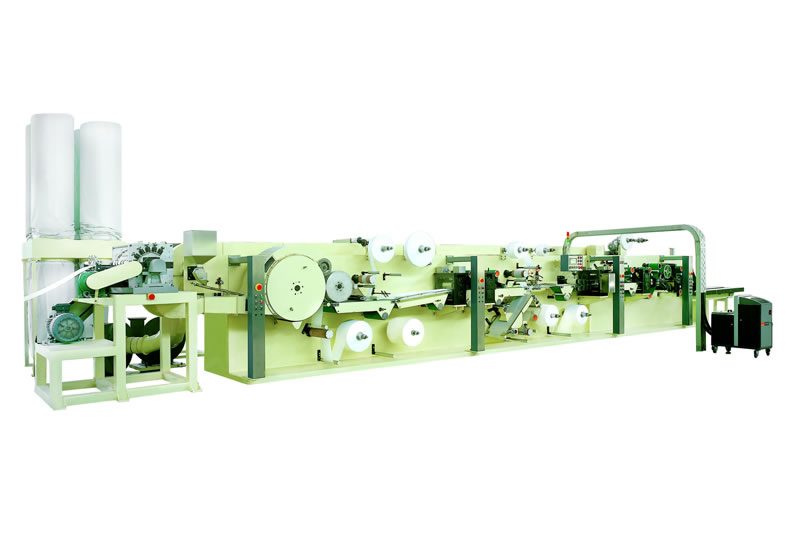

Maternity Napkin Production Line

Maternity Napkin Production Line

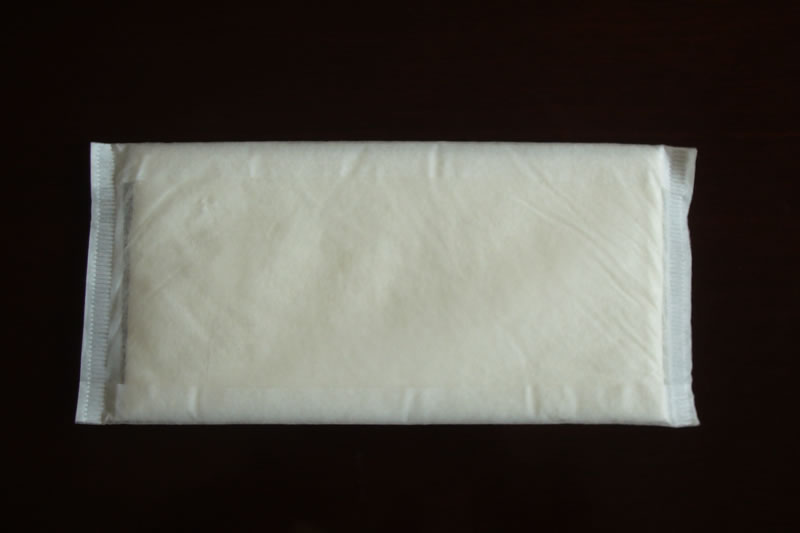

Maternity napkin production line mainly produces disposable products adopted by hospitals or families, especially when women excrete lochia in the early days of post-natal period. Maternity napkin machine is always used by middle or high class family for women after giving birth. We are original equipment manufacturer. We use plywood pallets with plastic film for packaging and container for delivery. For payment, you can choose T/T or L/C.

Features:
1. Bearing, electric components and synchronous belt are import brands.
2. There is an anti-leaking PE bottom film in the of maternity napkin production line.
3. Main motor inverter control and mechanical transmission with differential gear boxes, universal shafts &timing belt.
4. The machine wallboard is processed by the large gantry milling machine.

  • Main Configurations of Maternity Napkin Production Line:

    • 1. Inverter drive, PLC control with touch screen
      2. Pulp unwinding stand
      3. Cell mill with single in-feeding pulp
      4. Single drums forming for constant core formation
      5. SAP applicator
      6. Tissue unwinding & wrapping device
      7. Cotton bar crusher for wadding ADL
      8. Core compacting device
      9. Core cutting unit
      10. Laminated PE film with tissue semi-wrapping device
      11.NW full-wrapping device
      12.2 ends embossing unit
      13.Back release paper unwinding & splitting device
      14.Final cross cutting unit
      15.Product folding device
      16.Reject gate
      17.Product ordering output device
      18.Bag type dust collection system

  • Main Technical Parameters of Maternity Napkin Machine:
    • Production Speed 300pcs/min
      Required Power Supply 100Kw (glue applicator and  air compressor excluded)
      Power 380V, 50Hz, 3 Phases
      Compressed Air 0.6-0.8Mpa, 1.2 m³/min
      Total Weight About 23 T
      Dimension (for reference) 17m×4.5m×2.5m (L×W×H)
      Cycle and Delivery Time within 5-6 months according to different product structures

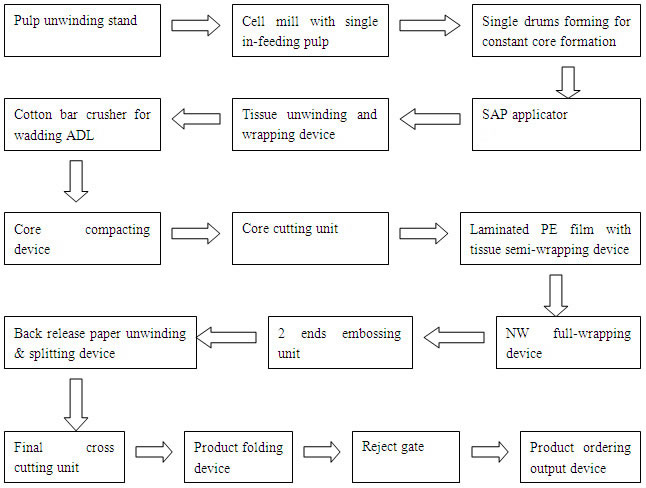

  • Flow Chart of Production Line:
