Pulp Core Sanitary Napkin Machine

Pulp Core Sanitary Napkin Machine

Description:

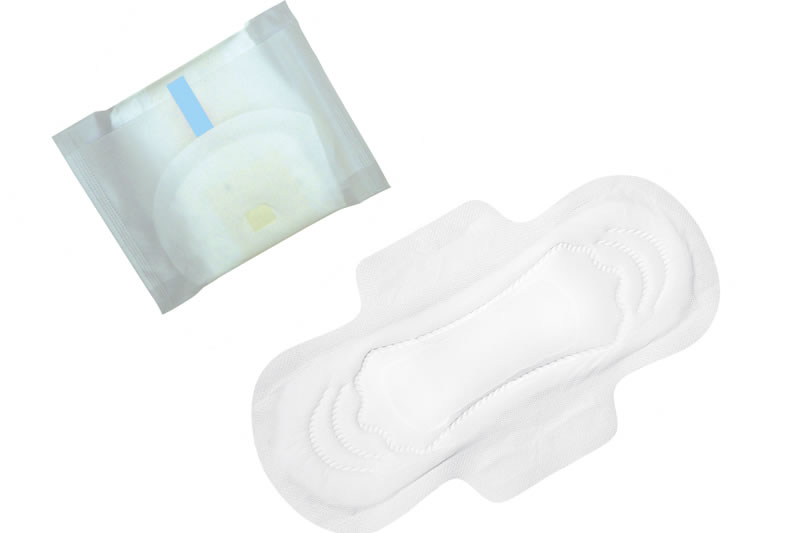

Pulp core sanitary napkin machine mainly produces menstrual pads with pulp core. Menstrual pads are made from a range of materials, differing in style, country of origin, and brand. Different sanitary napkin production lines should be specially designed.Pulp core is made up of drum and wrapped by tissue paper (with SAP), N.W. fabric, PE film, back release paper, wing release paper, package film and easy tear tape. The absorbent core is made from fluff pulp. The addition of SAP sucks up the liquid quickly. There are several types of disposable menstrual pads.

Application of This Sanitary Pad Machine:
Full-servo, semi-servo and inverter controlled pulp core sanitary napkin making machines are available in our company. Straight or winged sanitary pad machine can be made in this production line. We produce easy packing, individual packing and straight packing napkins. With different equipments, it can also be used to produce ultra-thin sanitary napkins. The most typical pulp core sanitary napkin machines are easy-open packing pulp core and ultra-thin wing sanitary napkin machines.

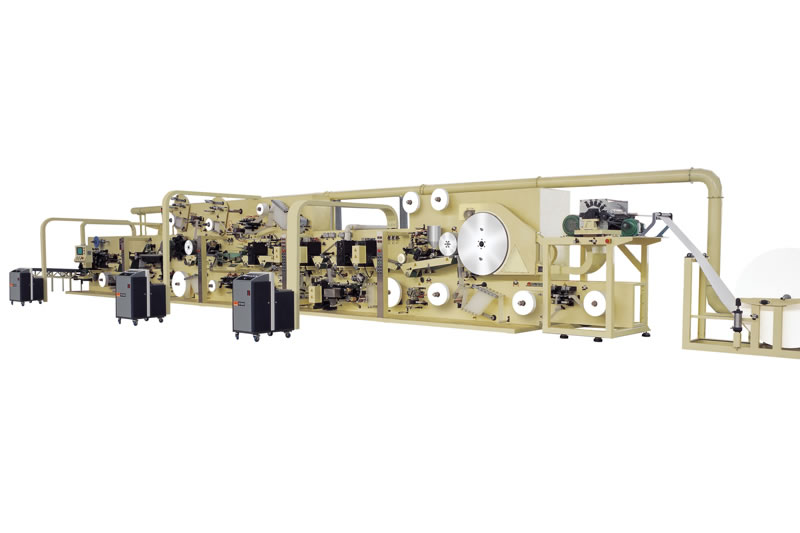

  • Typical Line: Easy-Open Packing Pulp Core/ Wing Sanitary Napkin Machine

    • Main Configurations of this Sanitary Pad Machine:
      1. Inverter drive, PLC control with touch screen
      2. Pulp unwinding stand
      3. Cell mill with single in-feeding pulp
      4. Constant drum forming unit
      5. SAP applicator
      6. Tissue /unwinding and wrapping device
      7. Core compacting unit
      8. Core cutting unit
      9. Tension control raw material unwinding unit with auto splicing
      10. 2 sides NW vertical cutting device
      11. Side gather embossing unit
      12. ADL cutting and dotting unit
      13. Grooving unit
      14. Contour sealing unit
      15. Back release paper unwinding and splitting device
      16. Final cutting unit
      17. Wing folding device
      18. Wing release paper unwinding and splitting device
      19. 90°revolving device
      20. Product folding device
      21. Adhesive tape unwinding and applying device
      22. Thermo-sealing and cutting unit
      23. Reject gate
      24. Product output device
      25. Bag type dust collection system

  • Main Technical Parameters of This Pulp Core Sanitary Napkin Machine:

    • Production Speed: 450pcs/min
      Required Power Supply: 110Kw (glue applicator and air compressor excluded)
      Power: 380V, 50Hz, 3 Phases
      Compressed Air: 0.6-0.8Mpa, 1.2m³/min
      Total Weight: 28 T
      Dimensions: (m) L×W×H: 23×6.5×3.5 (for reference)

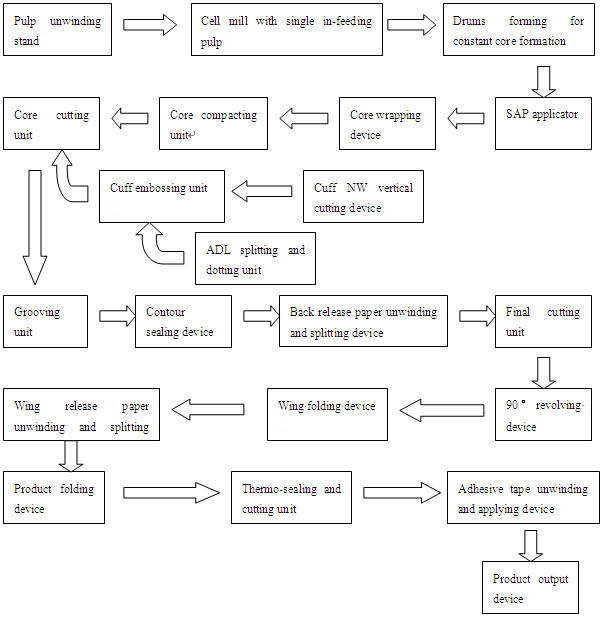

  • Flow Chart of Easy-Open Packing Pulp Core/ Wing Sanitary Napkin Machine:

Shanghai Landytop Industry Co.,Ltd. is a professional manufacturer and supplier of sanitary pad machine, specializing in the production of pulp core sanitary napkin machines in China. In addition to these products, we also provide maternity napkin production line, hemostasia pad machinery, breast pad machine, pet diaper machine, pet pad machine and packing machine, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our sales cover a wide range all over the world.
