High-Speed Underpad Machine

High-Speed Underpad Machine

Description:
Our high-speed underpad machine is capable of producing the full size range of under pad products. Products are made up of non-woven fabrics,fluff pulp, SAP, tissue paper, back sheet and so on. Because of the nature of this product, the situation that size will change as time goes is held to a minimum. Attachment options are available for specialty products. The under pad is a rectangular. We adopt single layer fluff core and SAP applicator. The frequency of the under pad production line has PLC control. Our high-speed underpad machines can adjust the length. We make use of plywood pallets with plastic film for packaging and container for delivery.

Features of High-Speed Underpad Machine:
1. Products are output in line.
2. There is SAP auto adding with amount control.
3. The high-speed under pad machine owns vision integration system.
4. High-speed teeth-like crushers are available in the underpad machines.
5. The machine has an auto reject for wasted diaper, auto detect and alarm for material exhausted.
6. Machine is with high efficient, and reduce produce cost.
7. The machine wallboard is processed by the large gantry milling machine.

  • Main Configurations of High-Speed Underpad Machine:

    • 1. Inverter drive, PLC control with touch screen
      2. Tension control raw material unwinding unit with auto splicing
      3. Pulp unwinding stand
      4. Cell mill with single in-feeding pulp
      5. Forming chest for constant core formation
      6. SAP applicator
      7. Tissue edge folding device
      8. Core embossing unit
      9. Core cutting unit
      10. Roller transfer unit
      11. Longitudinal folding device
      12. Final cross cutting unit
      13. Tri-folding device
      14. Reject gate
      15. Bag type dust collection system
      16. Product ordering output device

  • Main Technical Parameters of High-Speed Underpad Machine:
    • Production Speed 160m/min
      Max. Production Speed 200m/min
      Required Power Supply About 135Kw (glue applicator and  air compressor excluded)
      Power 380V, 50Hz, 3 Phases
      Compressed Air 0.6-0.8Mpa, 2.5 m³/min
      Total Weight About 32T
      Dimension(for reference) 22m×7m×2.3m (L×W×H)

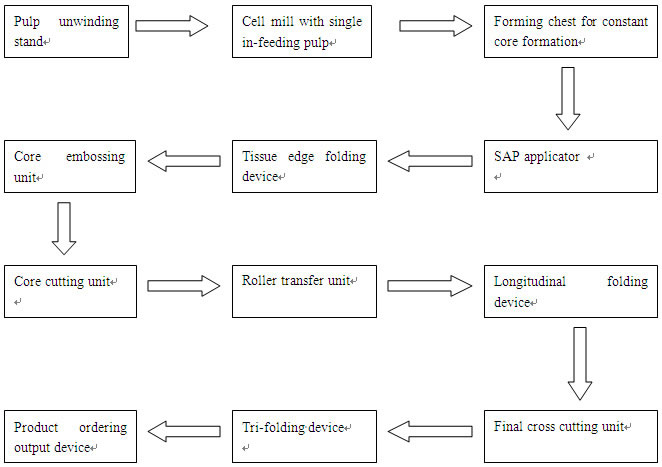

  • Flow Chart of Production Line:

Shanghai Landytop Industry Co.,Ltd. is a professional manufacturer and supplier of high-speed underpad machines in China. In addition to these products, we also provide sanitary napkin machine, baby diaper machinery, adult diaper machine, maternity napkin production line, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our sales cover a wide range all over the world.
