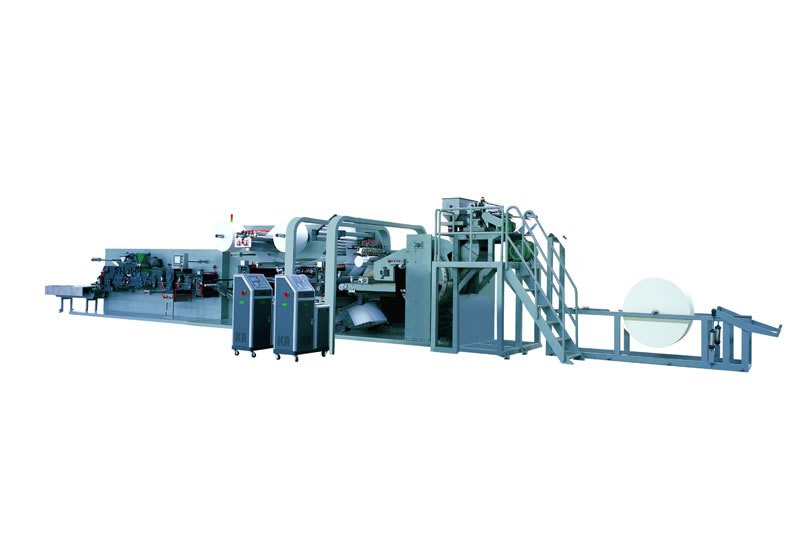

Underpad Machine without Tissue

Underpad Machine without Tissue
Underpad Machine without Tissue Underpad Machine without Tissue

Description:

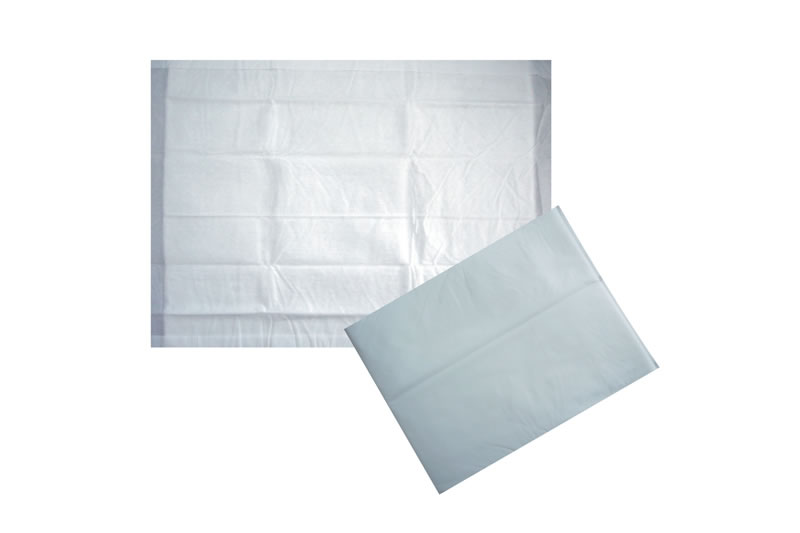

Underpad machine without tissue is mainly used to make disposable pad products for families or hospitals. Under pads are made up of non-woven fabrics, fluff pulp, back sheet and so on. The equipment is originated in Landytop Precision Company in China in 2007. We produce and sell all kinds of underpad machines. Our products have gained the CE authenticate with high quality. As a underpad machine without tissue company, we have a group of managers, mechanical and electric control engineers with rich experiences. There are also many experienced technicians, workers of machine manufacturing, adjustment and installation. Our sales cover a wide range inside the country, throughout a number of provinces and cities. We use plywood pallets with plastic film for packaging and container for delivery.

Functions and Feature of This Underpad Machine:
1. The machine has variable frequency drive, PLC control and touch screen.
2. Underpad machine without tissue is configured with raw material tension control, active unwinding and deviation rectification device.
3. This underpad machine has a high degree of automation.
3. The reasonable design conforms to the actual operation need.
4. Frame panels are processed by large gantry milling.
5. Parts use CNC processing, so the accuracy is high which can ensure that the equipment can be operated stably.
6. The machine wallboard is processed by the large gantry milling machine.

  • Main Configurations of Underpad Machine without Tissue:

    • 1. Inverter drive, PLC control with touch screen
      2. Pulp unwinding stand
      3. Cell mill with single in-feeding pulp
      4. Single drums forming for interval core formation
      5. SAP applicator
      6. Core compacting unit
      7. Raw materials tension control and auto splicing
      8. NW edge folding device
      9. Roller transfer unit
      10. Longitudinal folding device
      11. Final cross cutting unit
      12. Tri-folding device
      13. Bag type dust collection system

  • Main Technical Parameters of Underpad Machine Without Tissue:
    • Production Speed 100m/min
      Required Power Supply 131Kw (glue applicator and  air compressor excluded)
      Power 380V, 50Hz, 3 Phases
      Compressed Air 0.6-0.8Mpa, 0.8 m³/min
      Total Weight 43 T
      Dimension(for reference) 19m×8m×4.2m (L×W×H)
      Packing plywood pallets with plastic film
      Delivery container

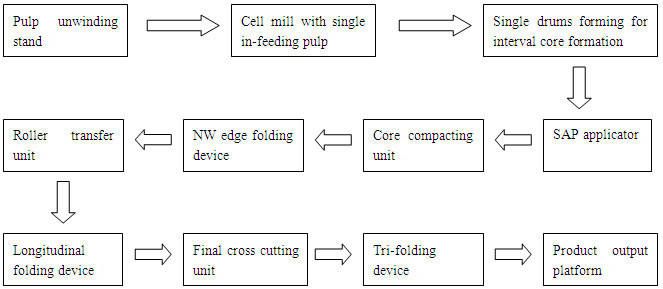

  • Flow Chart of This Underpad Production Line:
    • Flow Chart of This Underpad Production Line

Shanghai Landytop Industry Co.,Ltd. is a professional manufacturer and supplier of underpad machine without tissue in China. In addition to this product, we also provide underpad machine with tissue, maternity napkin production line, hemostasia pad production line, breast pad machine, pet diaper machine, pet pad machine and packing machine, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our clients are from all over the world, including Europe,the Middle East, Africa and Southeast Asia.

Related Products

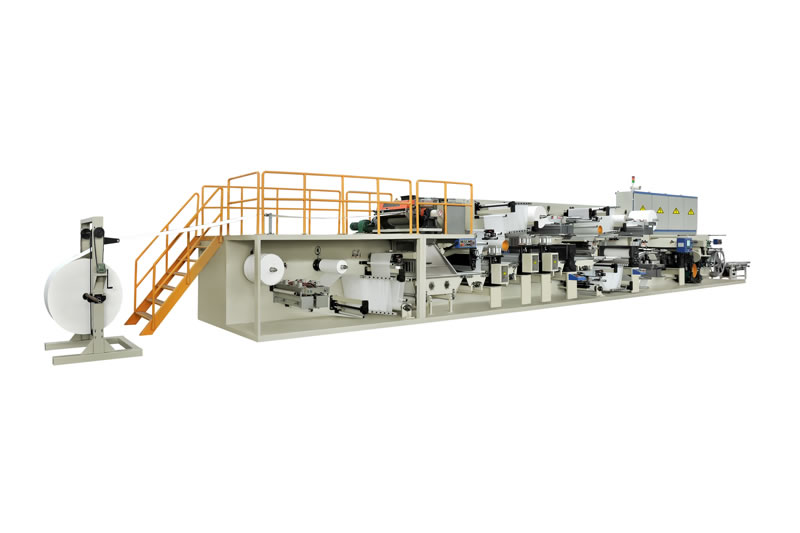

  • High-Speed Underpad MachineOur high-speed underpad machine is capable of producing the full size range of under pad products. Products are made up of non-woven fabrics, wood pulp, back sheet and so on. Because of the nature of this product, the situation that size will change as time goes is held to a minimum. Attachment options are...
