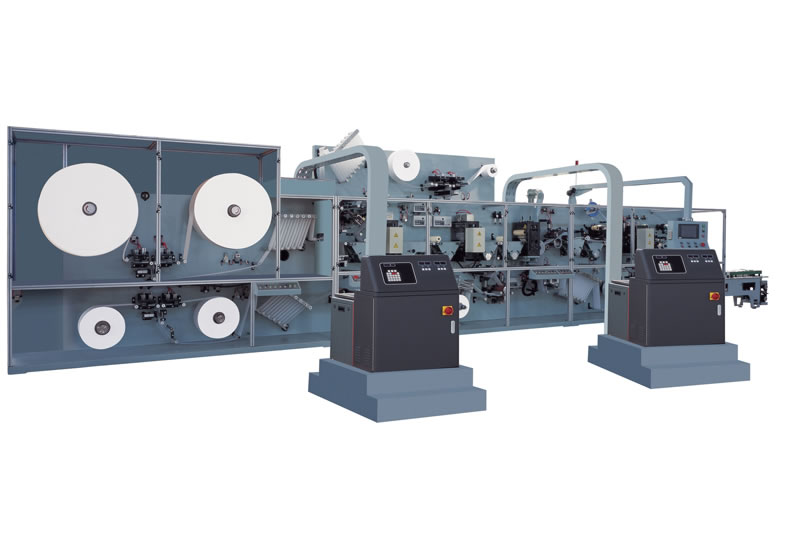

Full-Servo Ultra-thin Panty Liner Machine

Full-Servo Ultra-thin Panty Liner Machine

Description:

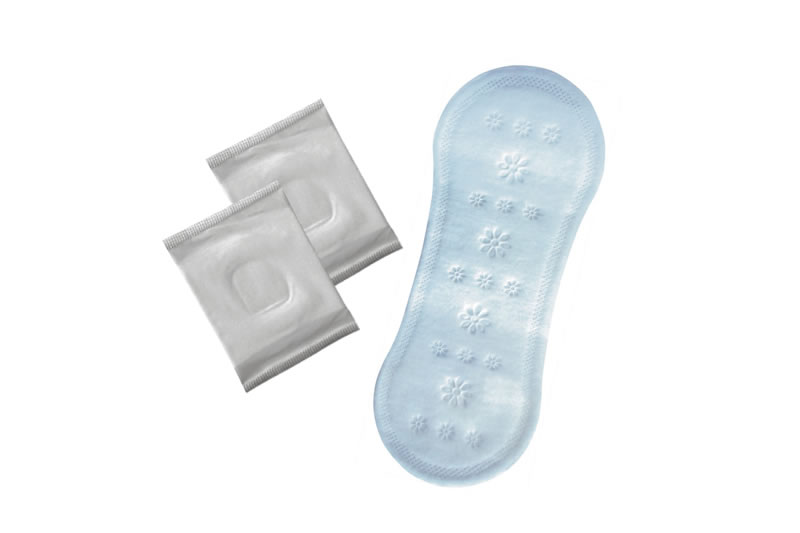

Our company is one of the leading manufacturers of women sanitary pad machines and panty liner making machines. Full-servo ultra-thin panty liner machine (cross direction) is a kind of ultra-thin panty liner machine. Full-servo ultra-thin panty liner machine (cross direction) has a high control precision. It works stably, and high efficient. The machine produces panty liner products used before or after women's menstruation or for daily use. We use plywood pallets with plastic film for packaging and container for delivery.

Distinguishing Features:
1. Full-servo motor driving makes a high conveying accuracy.
2. The quality is high.
3. Full-servo panty liner making machine has automatic web guider.
4. This machine provides a touchable screen controlling platform for the service in the man-machine interface.
5. It is equipped with an easy-open package system.
6. It has functions of auto inspection, warning and shutting down the machine.
7. The whole machine is synchronous in speed and driven by servo motor and with PLC control.
8. The machine wallboard is processed by the large gantry milling machine.

  • Main Configurations:

    • 1. Full-servo drive, PLC control with touch screen
      2. Tension control raw material unwinding unit with auto splicing
      3. ADL Splitting unit;
      4. Embossing unit
      5. Contour sealing unit
      6. Back release paper unwinding device
      7. Final cutting unit
      8. Product folding device
      9. Thermo-sealing unit
      10. Package splitting unit
      11. Auto quality control system
      12. Reject gate
      13. Product output device
      14. Bag type dust collection system
      15. Safety door

  • Main Technical Parameters of Full-Servo Ultra-thin Panty Liner Machine:

    • Production Speed: 1600pcs/min
      Designed Speed: 2000pcs/min
      Required Power Supply: 110Kw (glue applicator and air compressor excluded)
      Power: 380V, 50Hz, 3 Phases
      Compressed Air: 0.6-0.8Mpa, 1.2m³/min
      Total Weight: 18 T
      Dimensions: (M) L×W×H: 13m×4.5m×2.6m (for reference)

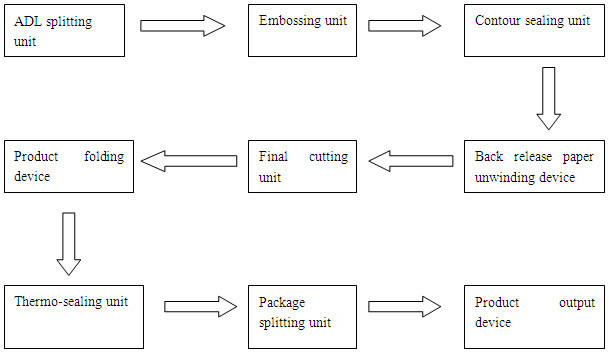

  • Flow Chart of Production Line:
