Underpad Machine with Tissue

Underpad Machine with Tissue
Underpad Machine with Tissue

Introduction:

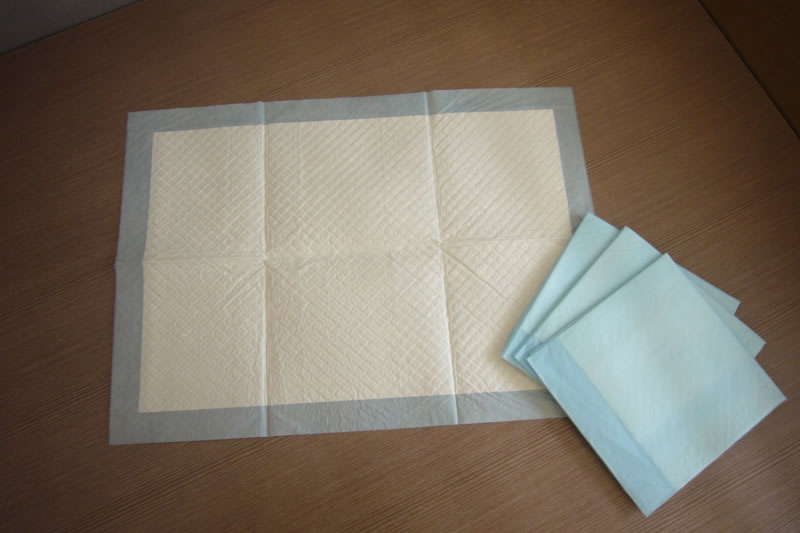

Underpad machine with tissue is mainly used to produce family or hospital disposable pad products. Products are composed of non-woven fabrics, tissue, fluff pulp, SAP, back sheet and other materials. We produce and sell all kinds of underpad machines. Our products have gained the CE authenticate with their high quality. As a leader of China under pad machines manufactory, a group of managers, mechanical and electric control engineers with rich experiences in this field joined in our company. There are also a number of experienced technicians, workers of machine manufacturing, adjustment and installation in our company. We follow strictly the standards for machinery industry formulated by the state. Our sales cover a wide range inside the country, throughout various provinces and cities. We make use of plywood pallets with plastic film for packaging and container for delivery to ensure products' safety.

Features of Underpad Machine with Tissue:
1. The underpad machine can produce products of different sizes.
2. The weight of products can be adjusted through touch screen.
3. The underpad machine is easier to operate and adjust.
4. The machine wallboard is processed by the large gantry milling machine.

  • Main Configurations of Underpad Machine with Tissue:

    • 1. Inverter drive, PLC control with touch screen
      2. Tension control raw material unwinding unit with auto splicing
      3. Pulp unwinding stand
      4. Cell mill with single in-feeding pulp
      5. Forming chest for constant core formation
      6. SAP applicator
      7. Tissue edge wrapping device
      8. Core embossing unit
      9. Core cutting unit
      10. Roller transfer unit
      11. Longitudinal folding device
      12. Final cross cutting unit
      13. Tri-folding device
      14. Reject gate
      15. Bag type dust collection system

  • Main Technical Parameters of Underpad Machine with Tissue:

    • Production Speed: 120m/min
      Max. Production Speed: 140m/min
      Required Power Supply: about 135 Kw (glue applicator and air compressor excluded)
      Power: 380V, 50Hz, 3 Phases
      Compressed Air: 0.6-0.8Mpa, 2.5 m³/min
      Total Weight:  about 30T
      Dimensions: (M) L×W×H: 20m×70m×2.3m (for reference)

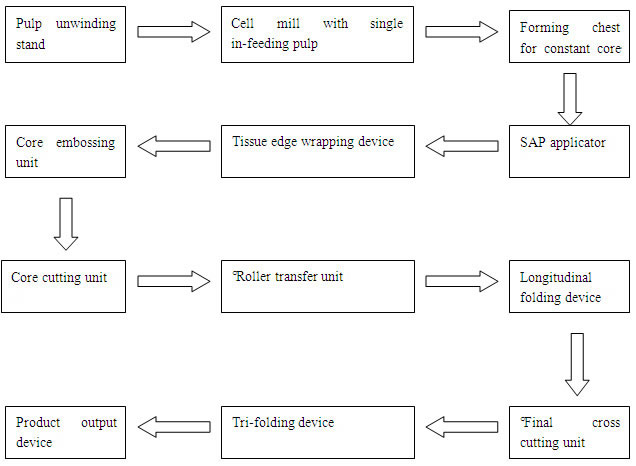

  • Flow Chart of this Underpad Machine:

Shanghai Landytop Industry Co.,Ltd. is a professional manufacturer and supplier of underpad machines (with tissue) in China. In addition to these products, we also provide sanitary napkin machine, baby diaper machinery, adult diaper machine, maternity napkin production line, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our sales cover a wide range all over the world.
