Mini Sanitary Napkin Machine

Mini Sanitary Napkin Machine

Description:

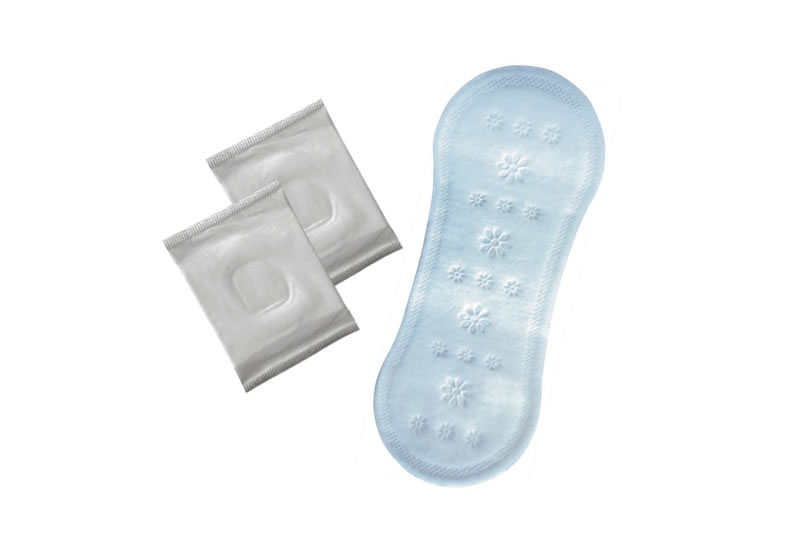

The mini sanitary napkin machine produces panty liner products used before or after women's menstruation. Our company is one of the professional manufacturers of high-quality mini sanitary napkin machines. We provide various production lines to manufacture adult diapers, baby diapers, baby diaper pads, sanitary napkins and panty liners. Our six years' experience in machinery production has taught us that superior service is the key to establish long-lasting relationships with clients. So when you order one of our disposable hygiene product making machines, you will get expert help from our technicians. Our clients are from all over the world, including Europe, the Middle East, Africa and Southeast Asia. We use plywood pallets with plastic film for packaging and container for delivery to ensure its safety.

Equipment Properties of Mini Sanitary Napkin Machine:
1. Composed by modules, with fix standard dimensions, the surface of the machine wall to be processed by machining, in welded steel & painted.
2. Main motor inverter control and mechanical transmission with differential gear boxes, universal shafts &timing belt.
3. Full automatic unwinding modules are allowed in line in order to drive and to control the raw material tension.
4. Web guiders be equipped for high precision.
5. Touchable screen controlling platform is to provide the service in the man-machine interface.
6. The machine wallboard is processed by the large gantry milling machine.

  • Main Configurations of Mini Sanitary Napkin Machine:

    • 1. Inverter drive, PLC control with touch screen
      2. Pulp unwinding stand
      3. Needle-disc mill with single pulp in-feeding
      4. Drum forming for constant core formation
      5. SAP applicator
      6. Tension control raw material unwinding unit with auto splicing
      7. Core compacting device
      8. Grooving unit
      9. Contour sealing unit
      10. Back release paper unwinding and splitting device
      11. Final cutting unit
      12. Product 180º rotating device
      13. Wing release paper unwinding and splitting device
      14. 90°revolving device
      15. Interval ordering device
      16. Product folding device
      17. Adhesive tape unwinding and applying device
      18. Thermo-sealing and cutting unit
      19. Reject gate
      20. Bag type dust collection system

  • Main Technical Parameters of Mini Sanitary Napkin Machine:

    • Production Speed: 600pcs/min
      Required Power Supply: 50Kw (glue applicator and air compressor excluded)
      Power: 380V, 50Hz, 3 Phases
      Compressed Air: 0.6-0.8Mpa, 1.2m³/min
      Total Weight: 20 T
      Dimensions: (m) L×W×H: 17×4.5×2.4 (for reference)

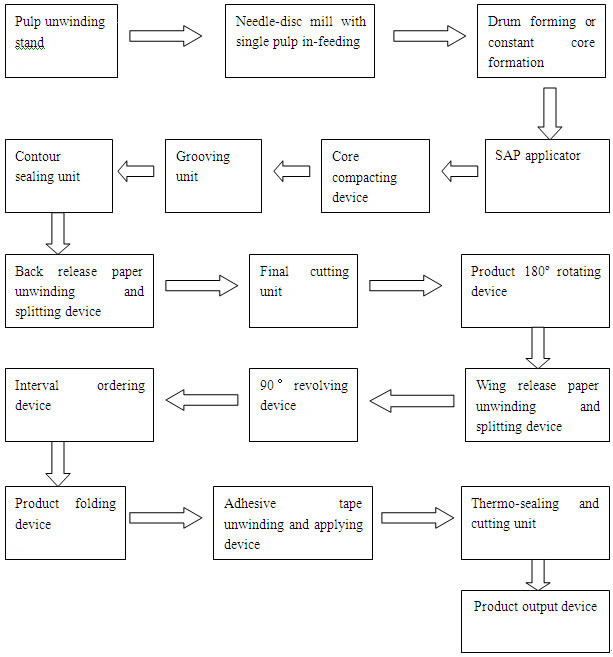

  • Flow Chart of High-quality Mini Sanitary Napkin Machines:

Shanghai Landytop Industry Co.,Ltd. is a professional high-quality mini sanitary napkin machines manufacturer in China. In addition to these products, we also provide maternity napkin production line, hemostasia pad machines, breast pad machine, pet diaper machinery, pet pad machines and packing machinery, etc. Our products have gained the CE authenticate and the standard attestation of ISO9001 International Quality System with their high quality. We follow strictly the standards for machinery industry formulated by the state. Our clients are from all over the world, including Europe, the Middle East, Africa and Southeast Asia.
