Cross Direction Panty Liner Machine

Cross Direction Panty Liner Machine

Description:

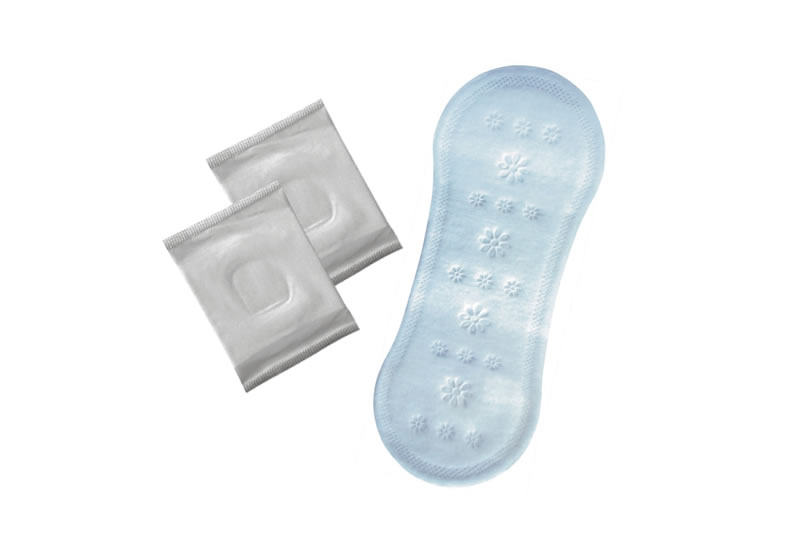

According to the direction of products in production line, there are main two kinds of panty liner machine. One is machine direction panty shield machine and the other is panty shield making machine with cross direction. Cross direction panty liner machine can produce women used pulp core or ladies' ultra-thin core panty liners. We can choose different configurations to compose easy-open packing, individual packing and straight packing panty liner machines. According to different requirements, we can also select full-servo drive or semi-servo female cross direction panty shield machine, etc. The panty shield making machine with cross direction can use grouping device to output products in groups. The most typical ones are full-servo ultra-thin panty liner machine (cross direction) and easy-open packing ultra-thin panty liner machine with grouping device (cross direction). We use plywood pallets with plastic film for packaging and container for delivery to ensure safety.

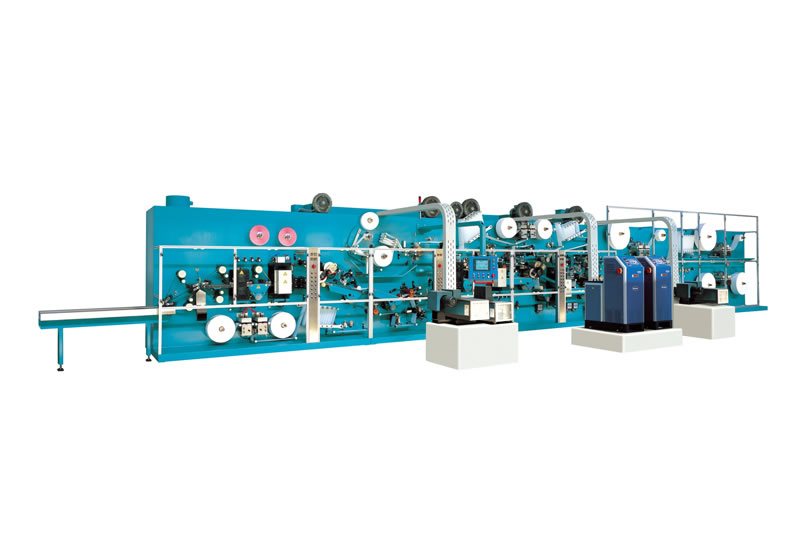

Typical Line: Full-Servo Ultra-Thin Panty Liner Machine (Cross Direction)
Features of this Panty Shield Machine:
1. There is servo motor driving with PLC control and touch screen.
2. The shaft unwinding is designed for all main materials with pneumatic reels.
3. The panty shield machine with cross direction has an auto reject gate to detect and alarm for wasted pad and material exhausted.
4. The machine can adjust phase during running without stop.
5. Products can count and output in line automatically.
6. It is equipped with online tri-fold easy-open package system.
7. The machine wallboard is processed by the large gantry milling machine.
